Amsec DS Series Drop Safes - Call For Pricing




DSF2014 Front Drop with Combo Lock
AMSEC’S DS SERIES DEPOSITORY SAFES are designed to provide immediate deposits and storage for cash, jewelry and miscellaneous valuables. Deposits can be made through a locked door via a top-loading rotary hopper, a reverse or a front-loading deposit door.

Standard Features

Body

  • Strong, formed “B” Rate construction made of A36 solid steel plate for improved security and appearance.
  • Formed door jamb for increased resistance to sledgehammer attack.
  • Four anchor bolt holes are standard.

Door - Model Numbers 2014, 2714 and 3214

  • ½" thick A36 solid steel plate, recessed ½" to increase resistance to pry attack.
  • U.L. Group II combo lock (C), U.L. listed dual nose keylock (K).
  • Optional electronic locks available.
  • Three 1" diameter chromed steel locking bolts.
  • Bolt detent system engages boltwork automatically.
  • Auxiliary spring-loaded relocking device.
  • Lock and relock protected by large carburized hardplate.

Additional Features: Wide Body Model 2731

  • DOOR: (3) 1" x ½" rectangular plated bolts.
  • Unique space-efficient, side-by-side design creates full depth depository and large storage compartment.
  • Accepts cash trays up to 13" x 18".
  • Optional coin rack available on storage compartment door.

Hopper

  • 2014 is available w/reverse hopper.
  • Large package sizes:
    • (Top Load Rotary): 4¾"D x 4¾"W x 10"L
    • (Front/Reverse Load): 4"D x 2¾"W x 10½"L
  • Recessed, heavy duty 3/16" construction (¼" door).
  • Protected by dual “anti-fish” baffles.

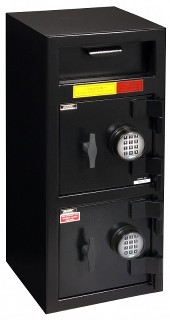

Double Door Drop Safe DSF3214DST2714

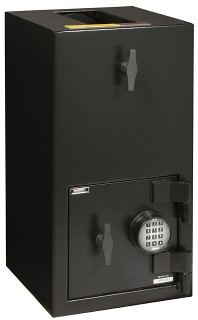

 DSF 3214                         DST2714

For Chart Below:

†Specify Prefix: T=Top Loading, F=Front Loading, R=Reverse Hopper, K=Key Lock, C=Combo Lock, E=Electronic Lock
Add 2" to outside depth for dial and handle projection.
 DSC2014KC = Camlock on locker, combination on deposit safe.



Models At a Glance
ModelOutside Dimension(H*W*D)Weight(lbs)Interior Capacity
DST2014 20.25 x 14 x 14 87 1,739 cu. in.
DSF2014 20.25 x 14 x 14 79 1,513 cu. in.
DSR2014 20.25 x 14 x 14 94 1,513 cu. in.
DSC2014KC 27.25 x 14 x 14 104 1,127 cu. in. (top) - 1,513 cu. in. (bottom)
DST2714 27.25 x 14 x 14 101 2,798 cu. in.
DSF2714 27.25 x 14 x 14 108 2,609 cu. in.
DSR2714 27.25 x 14 x 14 92 2,609 cu. in.
DST3214 32.25 x 14 x 14 152 1,664 cu. in. (top) - 1,890 cu. in. (bottom)
DSF3214 32.25 x 14 x 14 152 1,664 cu. in. (top) - 1,890 cu. in. (bottom)
DST2731 27.25 x 30.75 x 21 285 4,787 cu. in. (left) - 7,776 cu. in. (right)
